Deploying Kanzi applications to Android

Before you can build and deploy Kanzi applications to Android devices, you need to set up the Kanzi build environment for Android and install on your computer the USB device drivers for your Android device. See Installing the Kanzi build environment for Android.

Building and deploying Kanzi applications to Android from Kanzi Studio

If your Kanzi application includes a Kanzi Engine plugin, you have to build and deploy your application manually. See Building and deploying Kanzi applications to Android manually.

To build and deploy your Kanzi application to Android from Kanzi Studio:

1. If you add content to your application using the Kanzi Engine API, make sure to include that content in the <ProjectName>/configs/android/build.xml file in the <target name="-pre-compile"> target. For example, to add all .xml and .png files in the <ProjectName>/Application/bin directory use


   <target name="-pre-compile">
           <echo>Copying assets</echo>
           <copy todir="${asset.absolute.dir}">
               <fileset dir="${asset.absolute.dir}/../../../../bin">
                   <include name="**/*.kzb"/>
                   <include name="**/*.cfg"/>
                   <include name="**/*.xml"/>
                   <include name="**/*.png"/>

2. Connect your Android device to your computer.
3. In Kanzi Studio create or open the project for your Kanzi application and select File > Export > Build Android Package.
   Kanzi Studio builds the application source code, creates .apk package, and installs the package to your Android device.

Configuring Android builds

You can configure the building of your Kanzi applications for Android using the application configurations in Kanzi Studio. For example, you can set the target architecture, and whether Kanzi should deploy the built package to the attached target device. You can set which application configuration you want to use when you select File > Export > Build Android Package in Project > Properties in the Default Build Configuration property.

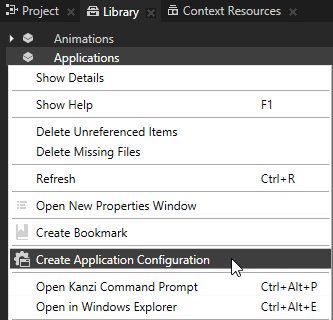

1. In Kanzi Studio in the Library right-click Applications and select Create Application Configuration.

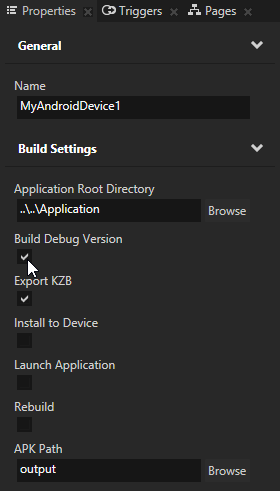

2. In the Properties set the configuration for the Android build.
   For example:
   • Enable the Build Debug Version property to set the build type to debug, instead of the default release build type.
   • Disable the Install to Device property if you want to manually install the .apk package to your Android device.


Setting the Java version for Kanzi applications

To set the Java version for your Kanzi applications for Android, add to the Application/configs/platforms/android/build.xml as the first child elements of the top level <project> element and set the value attribute to the Java version you want to use

<property name="java.target" value="7" />
<property name="java.source" value="7" />

Building and deploying Kanzi applications to Android manually

SCons runs the SConstruct file in the configuration directory of the platform from which you run the scons command. SConstruct file is the entry point for building the application and contains the information about the Kanzi Engine location and runs these files:

• <KanziWorkspace>/Engine/configs/platforms/common/config.py includes the Kanzi library definitions and common build flags used when building for all platforms.
• <KanziWorkspace>/Engine/configs/platforms/<PlatformName>/config.py includes the Kanzi platform-specific build flags and defines, and the toolchain. Edit this file when you want to customize the build configuration for your platform. For example, to match the locations of your platform SDK and board support package.
• <ProjectName>/Application/configs/platforms/common/config.py includes the optional, project-specific common configuration parameters.
• <ProjectName>/Application/configs/platforms/<PlatformName>/config.py includes the optional, project-specific platform configuration parameters.

To build and deploy Kanzi applications to Android manually:

1. If you add content to your application using the Kanzi Engine API, make sure to include that content in the <ProjectName>/configs/android/build.xml file in the <target name="-pre-compile"> target. For example, to add all .xml and .png files in the <ProjectName>/Application/bin directory use


   <target name="-pre-compile">
           <echo>Copying assets</echo>
           <copy todir="${asset.absolute.dir}">
               <fileset dir="${asset.absolute.dir}/../../../../bin">
                   <include name="**/*.kzb"/>
                   <include name="**/*.cfg"/>
                   <include name="**/*.xml"/>
                   <include name="**/*.png"/>

2. Connect your Android device to your computer.
3. Open the command line in the configuration directory of the platform for which you want to build the Kanzi application (<ProjectName>/Application/configs/platforms/<PlatformName>) and make sure you have the correct environmental variables set. See Setting the Kanzi environment variables.
   For example, to build your Kanzi application for:
   • Android. Open the command line in the <ProjectName>/Application/configs/platforms/android directory.
   • Linux. Open the command line in the <ProjectName>/Application/configs/platforms/linux_x11_glx directory.
   • Windows. Open the command line in the <ProjectName>/Application/configs/platforms/win32 directory.
4. Run the scons command with the build parameters for your Kanzi application.

   Syntax	scons <library> <type> <name>
   Parameters	library (Optional) the graphics library: ES2 builds the application with OpenGL ES 2.0 GL builds the application with OpenGL type (Optional) the build type: Release builds the application with compiler optimizations enabled. The release option builds smaller files than the debug option. Use this option for production purposes. Default value. Debug builds the application with disabled compiler optimizations and contains full debug information you can use with a debugger. The debug option builds larger files and debug applications run slower. Use this option for development purposes. Profile builds the application with compiler optimizations enabled, but without stripping the debug information that enables you to track the performance in some parts of the Kanzi Engine. Use this option when you want to measure the performance of your application. For example, when you want to find out which parts of the application take a lot of time to run, or which parts are called a large number of times. name (Optional) the name of the project
   Examples	// Builds the application with the default settings as specified // in config.py and SConstruct configuration files. scons // Builds the debug version of the application with // the OpenGL graphics library. scons GL debug // Builds the debug version of the application with the // OpenGL ES 2.0 graphics library from the Kanzi Studio // project named MyProject. scons ES2 debug MyProject

   Scons builds the Kanzi application source code and binary files in the <ProjectName>/Application/output directory.

5. In the <ProjectName>/Application/output directory run adb install or ant release install to install the .apk package of your Kanzi application on your Android device.
   For example, if your project is called MyProject and is stored in the <KanziWorkspace> run:


   adb install MyProject.apk


   or

   ant release install

Troubleshooting

• When deploying a Kanzi application to an Android device with a locked screen, running the application can fail or present wrong visual result. To get the correct result, restart the application.

• When you receive this error while compiling Kanzi applications for Android:

  [dex] Pre-Dexing C:\KanziWorkspace\3rdPartySDKs\android-sdk-windows\tools\support
  	\annotations.jar -> annotations-fa751cd593bf7078e9c18d47a485e852.jar
  [dx] Error: Could not create the Java Virtual Machine.Error occurred during
  	initialization of VM
  [dx] Error: A fatal exception has occurred. Program will exit.
  [dx]
  [dx] Could not reserve enough space for object heap
  BUILD FAILED

  Limit the max heap size of the dx tool in <KanziWorkspace>/3rdPartySDKs/android-sdk-windows/build-tools/18.1.0/dx.bat. Change the line:

  set defaultXmx=-Xmx1024M

  to

  set defaultXmx=-Xmx512M

• When using Java JDK version 1.8 or newer with Apache Ant version earlier than 1.9.0, Android build fails at Ant phase with the error message:


  Class not found: javac1.8


  To use JDK version 1.8 or newer with Apache Ant version earlier than 1.9.0, pass this flag to Ant:


  -Dbuild.compiler=javac1.7

• When you receive this error while building Android package:


  [javac] C:\KanziWorkspace\Projects\Myproject.java:142: error: binary literals are not supported in -source 1.5
  [javac]     private static int i = 0b10101;
  [javac]                            ^
  [javac]   (use -source 7 or higher to enable binary literals)
  [javac] 1 error

  You must use a version of Java which supports binary literals. See Setting the Java version for Kanzi applications.

• When file paths in a project are longer than 260 characters, building of the Android .apk fails. To build the .apk, use a shorter name for your Kanzi project.
